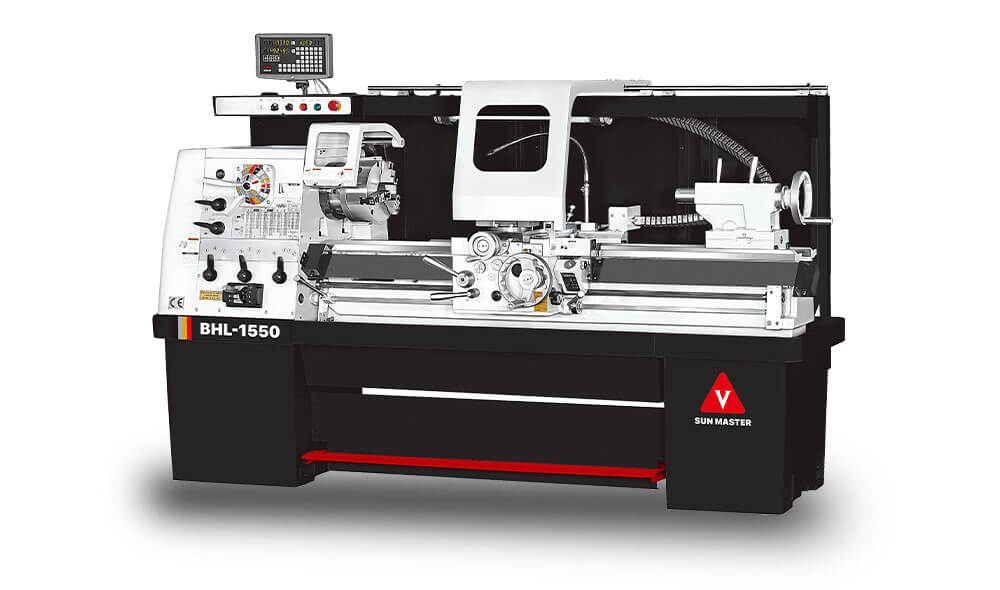

BHL Series Clutch Type Lathe
MODEL | 1550 | ||||||
---|---|---|---|---|---|---|---|
Capacity | Height of centers | 190 (7.48") | |||||
Swing over bed | Ø380 (14.96") | ||||||
Swing in gap | Ø610 (24") | ||||||
Swing over cross slide | Ø238 (9.37") | ||||||
Distance between centers | 1250 (50") | ||||||
Width of bed | 280 (11") | ||||||
Gap width in front of faceplate | 265 (10.43") | ||||||
Headstock and Main Spindle | Spindle nose, internal taper | D1-6, MT. No. 6 | |||||
Spindle center sleeve | MT. No. 6 x MT. No. 4 | ||||||
Spindle bore | Ø56 (2.2") | ||||||
Spindle speed: Gear steps / Range |
16 steps / 25 ~ 2000 R.P.M. | ||||||
Silver | 25 | 80 | 260 | 840 | |||
Golden | 33 | 108 | 350 | 1120 | |||
Red | 45 | 140 | 470 | 1500 | |||
Black | 60 | 190 | 625 | 2000 | |||
Disc clutch for forward / Reverse | |||||||
Carriage | Length on bed / Width of carriage | 484 (19.05") / 450 (17.71") | |||||
Cross slide travel | 235 (9.25") | ||||||
Top slide travel | 120 (4.72") | ||||||
Threads and Feeds | Whitworth threads: Kinds / Range | 45 Kinds / 2 ~ 72 T.P.I. | |||||
Metric threads: Kinds / Range | 39 Kinds / 0.2 ~ 14 mm | ||||||
D.P. threads: Kinds / Range | 21 Kinds / 8 ~ 44 D.P. | ||||||
M.P. threads: Kinds / Range | 18 Kinds / 0.3 ~ 3.5 M.P. | ||||||
Longitudinal feeds | 0.04 ~ 1.0 (0.0015" ~ 0.04") | ||||||
Cross feeds | 0.02 ~ 0.5 (0.00075" ~ 0.02") | ||||||
Tailstock | Quill diameter | Ø59 (2.322") | |||||
Quill travel | 127 (5") | ||||||
Taper of center | MT. No. 4 | ||||||
Motor | Main spindle Forced lubrication for headstock |
7.5 HP -- |
|||||
Coolant pump | 1/8 HP | ||||||
Measurement | Weight (Net / Gross) Approx. | 1450 kgs 1610 kgs |
|||||
Packing sizes | Length | 2580 (101.58") | |||||
Width x Height | 1120 (44.1") x 1900 (74.8") |
Specifications subject to change without notice.
Standard Accessories:
- Backplate for 9" chuck
- Dead center MT. No. 4
- Center MT. No. 4 with carbide tip
- Spindle center sleeve MT. No. 6
- Level pads......8 pcs
- Tool set & Box
- Full length splash guard
- Operation manual & parts list
Optional Accessories:
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-BHL.jpg)
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-03.jpg)
Faceplate
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-04.jpg)
4 & 3 Jaws Chuck
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-02.jpg)
Chuck Safety Guards
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-05.jpg)
5-Step Carriage Stop
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-01.jpg)
5C Lever Type Collet Closer
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-06.jpg)
Micrometer Carriage Stop
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-07.jpg)
Drill Chucks
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-10.jpg)
Digital Readout System (DRO)
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-16.jpg)
LED Light
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-17.jpg)
Quick Change Tool Post Set
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-14.jpg)
Steady Rest
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-18.jpg)
Follow Rest
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-15.jpg)
Power Feed
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-12.jpg)
Tool Post Safety Guard
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-13.jpg)
Hand Wheel Cover
![](https://www.sunmaster-cnc.com/proimages/products/Accessories/accessories-11.jpg)
Telescopic Taper Attachment
- All castings are properly stabilized and stress relieved.
- Bed ways are hardened & ground to min. HRC 48-55.
- Turcite B coating between the bed and carriage.
- Extremely low noise level.
- Foot brake pedal provided.
- Built-in coolant pump & fitting provided.
- CSS (constant surface speed control) on request for E.V.S. model.
- Wider bed way which give absorbs vibration.
